Material transport systems
UNISTAR® - Material transport systems for mining
NEUHÄUSER has been supplying transport equipment for conveying material from the storage site to the underground work site under the UNISTAR® brand since 1965.
The products distributed under the UNISTAR® brand are continuously adapted to the growing requirements of this sector. The range of products includes cars and containers for transporting liquids, bulk solids, extra-long materials and heavy loads such as safety shields or loading vehicles. The developed containers and pallets can be moved on both forklift trucks and overhead monorails.
With all our new developments, we place considerable importance on their cost effectiveness and on improving working conditions and occupational safety. By working closely with technical departments from the mining sector and with mining teams on site, we are able to provide proven and practice-oriented transport systems.
Product range
Container
The roof support system can be used on the overhead monorail and on lower cars with locking devices in accordance with DIN 20590. Depending on the route cross-section, two to four complete construction units, including lagging mats, can be loaded.
The loads do not need any additional securing as the end walls in the area of the transport segments are sufficiently high. With segment lengths that are larger than the rail length dimensions, the end walls are retracted in the guide rail area.
Technical specifications
Length:approx. 3,100 - 3,800 mm
Useful width: approx. 900 mm
Useful height:approx. 840 mm
Empty weight:approx. 590 - 730 kg
Load capacity:max. 40 kN
* Other dimensions available upon request
The container is suitable for use with forklifts, on transport cars with standard locking systems and on overhead monorails. The runners and end walls correspond to the standard DIN 20592.
Technical specifications
Length: approx. 3,200 - 3,600 mm
Useful width: approx. 600 - 800 mm
Useful height:approx. 510 - 700 mm
Useful capacity:approx. 1,050 - 1,500 l
Empty weight:approx. 450 - 600 kg
Load capacity:max. 50 kN
* Other dimensions available upon request
The bottom dumper is a versatile container for special underground applications. It is designed for use on overhead monorails and on lower cars with locking devices in accordance with DIN 20590. With its special design, it is particularly suitable for countersinking work.
Technical specifications
Useful length:approx. 1,600 - 3,600 mm
Useful width: approx. 700 - 1,000 mm
Useful height:approx. 600 - 800 mm
Useful capacity:approx. 700 - 2,000 l
Empty weight:approx. 300 - 1,000 kg
* Other dimensions available upon request
This container is ideal for the safe transport or storage of tools, equipment, and other items. It is equipped with four sturdy, lockable lids. The interior can be divided as required. The container is suitable for use on monorail suspension rail systems (EHB) and on undercarriages with locking devices in accordance with DIN 20590.
Technical data
Useful length: approx. 3,000 - 3,500 mm
Useful width: approx. 750 - 900 mm
Useful height: approx. 600 - 800 mm
Net weight: approx. 500 - 800 kg
* Other dimensions available on request

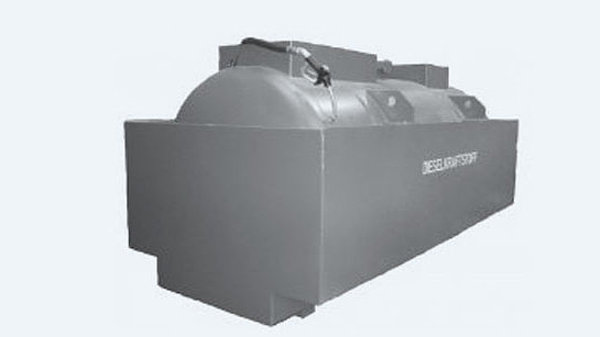

The fuel tank is welded from five-millimeter-thick shell plate and has a domed head. The raised end walls of the tightly welded drip walls protect the fittings. It is locked in place in accordance with DIN 20592-2. The tank is equipped with a lockable refueling and filling system from Bedia (or KHD) and has quick couplings for hose connections.
Technical data
Length: approx. 1700 mm
Useful width: approx. 750 mm
Useful height: approx. 830 mm
Weight: approx. 600 kg
Tank capacity: 370 l
* Other dimensions available on request

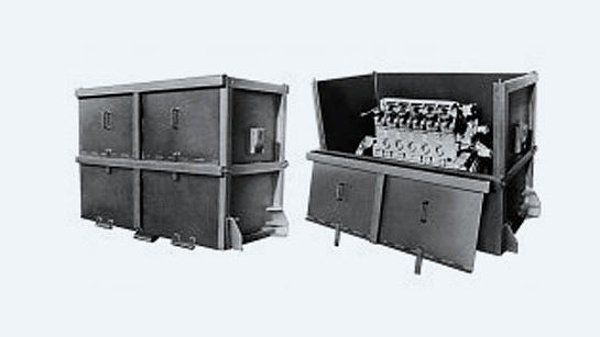

Pallets or containers safely transport all types of diesel engine units, whether from the manufacturer or repair shop to the underground site. They can be moved in standard containers, on standard locking devices (840 mm) or on a monorail suspension system. The side walls of the container can be folded down for easy loading and unloading.
Technical data
Useful length: approx. 1,515 - 1,660 mm
Useful width: approx. 640 - 754 mm
Useful height: approx. 800 - 1,185 mm
Useful capacity: approx. 1,050 - 1,500 l
Weight: approx. 250 - 500 kg
* Other dimensions available on request
The hydraulic tipping device allows easy handling of UNISTAR® transport containers without having to pay attention to the center of gravity. All materials can be tipped with precision. The remote control significantly increases personnel safety. The tipping device is particularly economical when used at stationary tipping points.
Technical
Tilt angle: unlimited left and right
Torque: max. 3,000 Nm
Operating pressure: 120 bar
Displacement: approx. 10 - 60 l/min
Speed: approx. 0.2 - 1.8 m/min
Hydraulic media: oils, emulsions
Drive options: self-supply, lift beam hydraulics, diesel cat hydraulics
* Other dimensions available on request
The frames, equipped with crane eyes and forklift pockets, are designed for transporting Euro or special pallets. Sturdy end walls reliably protect the load. The frame can be used both on the EHB and on undercarriages with locking devices in accordance with DIN 20590. On request, the frame can also be equipped with folding side walls.
Technical data
Useful length: approx. 3,080 - 3,300 mm
Useful width: approx. 750 - 950 mm
Useful height: approx. 700 - 1,185 mm
Weight: approx. 250 - 390 kg
Load capacity: approx. 50 kN
* Other dimensions available on request
The explosive transport container is divided into several (usually eight to twelve) individually lockable compartments. Each compartment can only be opened with two different keys to ensure the two-person principle.
Crumple zones on the front sides increase the transport safety of the container. It can be transported both on a monorail suspension system and on undercarriages with locking devices in accordance with DIN 20590.
Technical
Useful length: approx. 3,000 - 3,600 mm
Useful width: approx. 750 - 1,100 mm
Useful height: approx. 700 - 1,100 mm
Weight: approx. 800 - 1,000 kg
Capacity: up to 24 pieces (explosives boxes)
Ammunition boxes of standard dimensions
* Other dimensions on request

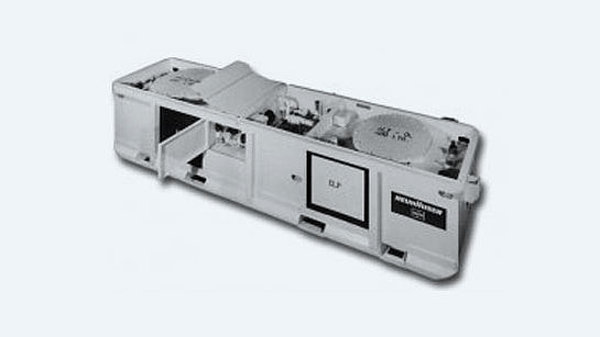

The supply and disposal container is designed for the supply and disposal of oils and oil-like liquids in underground mining. It has two chambers, each with a capacity of 400 liters, which are filled and emptied by means of a pump unit. The liquid levels are monitored by a pneumatic level control system. The fittings are protected by a lockable cover. The container can be transported on a monorail suspension system (EHB) or on a bogie with a locking device in accordance with DIN 20590.
Technical data
Useful length: approx. 3,565 mm
Useful width: 750 mm
Useful height: 695 mm
Weight: 775 kg
Useful capacity: 2 x 400 l
Pump capacity: 25 l/min at 6 bar compressed air
* Other dimensions available on request
The toothed scraper tipper was specially developed for transporting bulk materials, especially gravel.
On request, the tipping bodies can also be equipped with a floor discharge system. An intermediate locking mechanism enables two-stage tipping, which distributes the bulk material more evenly. The stable and mining-friendly design can be mounted on existing conveyor car undercarriages.
Technical data
Useful length: approx. 1,600 - 3,600 mm
Useful width: approx. 750 - 1,200 mm
Useful height: approx. 1,000 - 1,600 mm
Useful capacity: approx. 750 - 2,000 l
* Other dimensions available on request
The transport frame for extra-long material is based on the design of the UNISTAR® bogie frame with two heavy-duty rollers.
The transport frame is equipped with folding or removable end walls and side folding rails. Long or short wagons can be used as basic units.
Technical data
Useful length of the frame: approx. 5,000 - 10,000 mm
Useful width of the frame: approx. 750 - 1,000 mm
Total height: approx. 1,200 - 1,600 mm
Track: approx. 540 - 750 mm
Wheel diameter: approx. 300 - 400 mm
Load capacity: approx. 80 kN
* Other dimensions available on request
Carriage
The NEUHÄUSER material transport cars have a welded frame or body structure.
The material used to make them corresponds to at least Class S 235J2G3 in accordance with DIN 17100. The buffers and axles are equipped with maintenance-free rubber-metal springs. Upon request, the car can also be equipped with eight foldable stanchions made from tempered spring steel. The container locking system complies with the standard DIN 20590.
Technical specifications
Useful length:approx. 3,000 - 3,600 mm
Useful width: approx. 700 - 1,100 mm
Useful height:approx. 400 - 600 mm
Load capacity:approx. 50 - 120 kN
* Other dimensions available upon request
The container is suitable for use with forklifts, on transport trolleys with standard locking devices, and on monorail suspension systems. Skids and end walls comply with DIN 20592.
Technical data
Length: approx. 3,200 - 3,600 mm
Usable width: approx. 600 - 800 mm
Useful height: approx. 510 - 700 mm
Useful capacity: approx. 1,050 - 1,500 l
Net weight: approx. 450 - 600 kg
Load capacity: max. 50 kN
* Other dimensions available on request
The NEUHÄUSER low loader is characterized by a very stable welded construction and a low-lying loading area. Both turntables with fifth wheel can be detached from the low loader bridge, allowing optimum use of the entire usable length of the conveyor cage. The low loader is suitable for transporting heavy machine parts with relatively large dimensions.
The narrow wheelbase of the turntables allows the trailer to negotiate very tight curves with a radius of up to approx. 4,000 mm. Smooth running and return of the bogies are ensured by a torsion spring mounted in the center of the turntables. Stability is increased by support elements mounted on the sides of the turntables.
Technical data
Length: approx. 5,380 mm
Useful length: approx. 3,200 mm
Useful width (total width): approx. 900 mm
Total height: approx. 523 mm
Height of loading area: approx. 240 mm
Load capacity: 120 kN
Net weight: approx. 1,325 kg
* Other dimensions available on request
